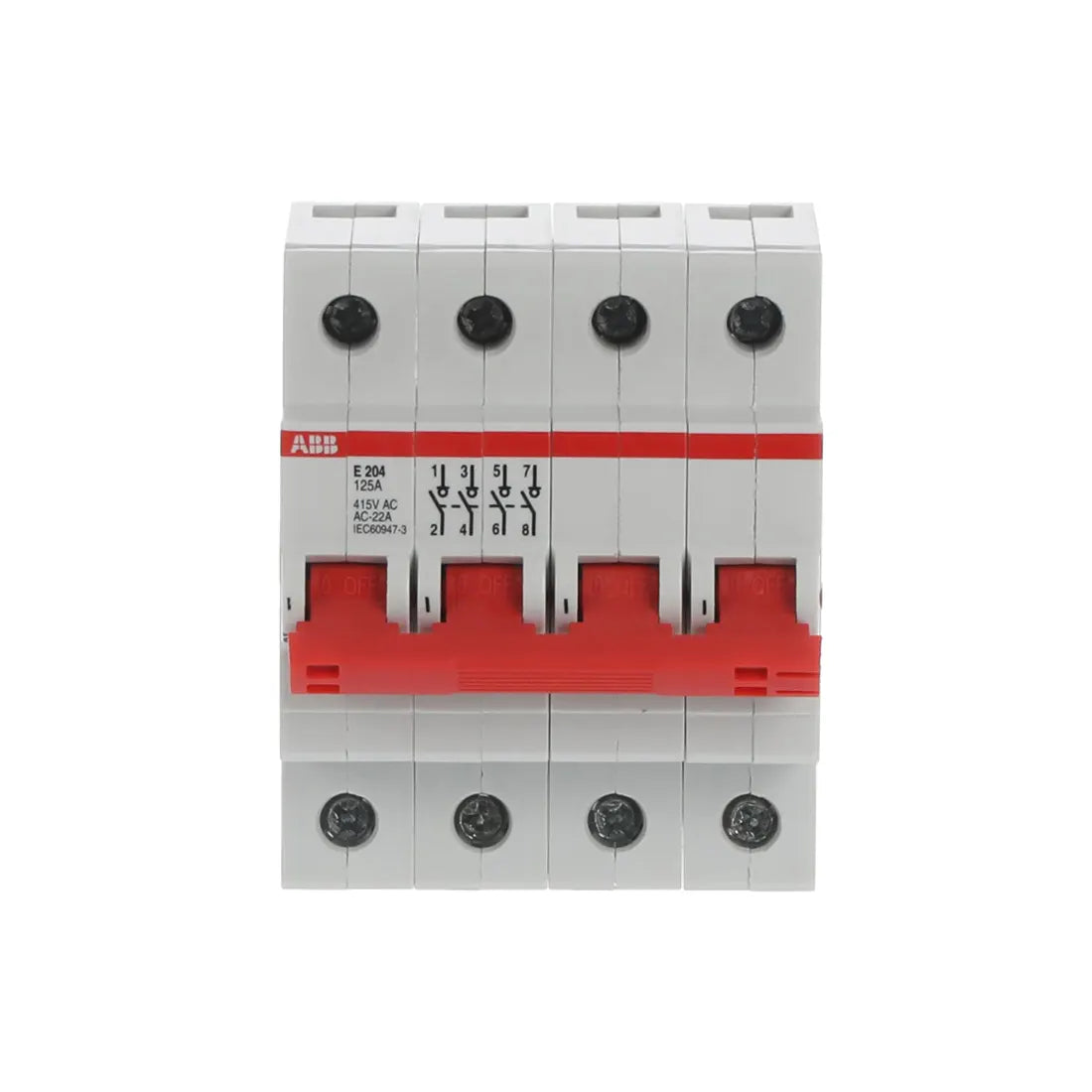

ABB Electrical Isolator Switch 2CDE284001R0125 125A 4P E204/125R
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Isolator Switch
Description
The ABB Electrical Isolator Switch 2CDE284001R0125 125A 4P E204/125R is a high-quality load control device designed according to EN 60947-3 and EN 60669-1 standards, ensuring reliable and safe operation. It features fast removal without dismantling the busbar, captive screws with recessed/slotted heads, and Pozidrive size 2 compatibility. The switch supports up to 3 auxiliary contacts (S2C-H6R) and includes an integrated lay-on edge for labeling (ILS), while optional locking accessories prevent unauthorized ON/OFF operation. With approvals from VDE, CCC, and KEMA, it guarantees compliance and safety. This 4-pole switch has a rated current of 125A, operational voltage of 230/400 V AC, and short-circuit breaking capacity of 6 kA, with a low power loss of 6.1 W per pole. The durable grey design includes IP10 protection and is easy to install on DIN rails. Environmentally conscious, it offers 81.9% recyclability, no landfill waste, and clear end-of-life disassembly instructions, making it an ideal solution for reliable and sustainable electrical load management.
| Brand | ABB |
| Model | E204/125R |
| Product ID | 2CDE284001R0125 |
| Product Type | Isolator |
| Width | 70 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.39 kg |
| Rated Current (In) | 125 A |
| Number of Poles | 4P |
| Rated Operational Voltage (Ue) | 230 / 400 V AC |
| Rated Voltage (Ur) | 400 V |
| Rated Conditional Short-Circuit Current (Inc) | 6 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 6 kA |
| Frequency | 50 Hz |
| Electrical Endurance | 10000 cycles |
| Mechanical Endurance | 20000 cycles |
| Switch Type / Operating Characteristic | Off / Toggle |
| Number of Modules | 4 |
| Position of Neutral Terminals | Right |
| Rated Cross-Section | Multi-wired 10…25 mm², Solid-core 25 mm² |
| Power Loss | 6.1 W per pole |
| Mounting | DIN-Rail |
| Degree of Protection | IP10 |
| Ambient Temperature | Operation -25 … +55 °C / Storage -40 … +70 °C |
| Standards & Compliance | IEC/EN 60947-3, RoHS, CE, VDE, CCC, KEMA |
