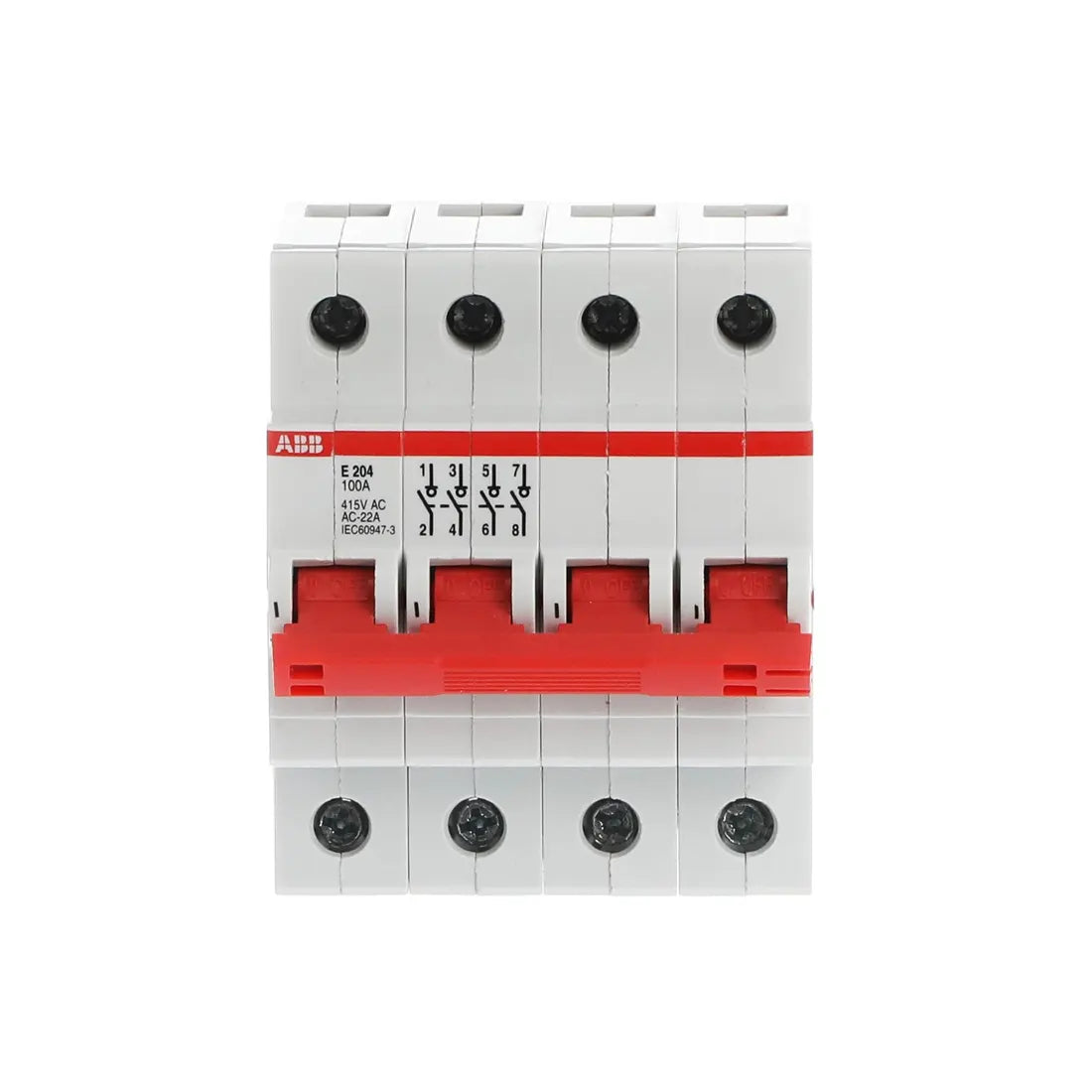

ABB Electrical Isolator Switch 2CDE284001R0100 100A 4P E204/100R
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Isolator Switch
Description
The ABB E204/100R 4-Pole 100A Electrical Isolator Switch is designed for reliable load control and safety in electrical installations. Built according to EN 60947-3 and EN 60669-1 standards, it ensures high performance and durability. The device features fast busbar removal without dismantling, captive recessed/slotted Pozidriv 2 screws, and compatibility with up to 3 auxiliary contacts (S2C-H6R). An integrated lay-on edge supports ABB’s labeling system (ILS), and optional locking accessories help prevent unauthorized ON/OFF operation. With approvals from VDE, CCC, and KEMA, this isolator switch provides a dependable solution for residential, commercial, and industrial applications. Environmentally designed with an 81.9% recyclability rate and supported by ABB’s sustainability initiatives, it offers long service life, IP10 protection, and compliance with RoHS and REACH regulations. Rated at 100A, 230/400V AC, and a 25 kA short-circuit capacity, the E204/100R is a robust and eco-friendly choice for safe electrical isolation.
| Brand | ABB |
| Model | E204/100R |
| Product ID | 2CDE284001R0100 |
| Product Type | Isolator |
| Width | 70 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.39 kg |
| Rated Current (In) | 100 A |
| Number of Poles | 4P |
| Rated Operational Voltage (Ue) | 230 / 400 V AC |
| Rated Voltage (Ur) | 400 V (12 V minimum) |
| Rated Conditional Short-Circuit Current (Inc) | 25 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 25 kA |
| Power Loss | 3.95 W per pole at rated operating conditions |
| Switch Type | Off / Toggle Actuator |
| Accessories Available | Yes (add-on up to 3 auxiliary contacts S2C-H6R, locking device optional) |
| Terminal Type | Screw terminals, cage type |
| Recommended Screwdriver | Pozidriv 2 |
| Wire Stripping Length | 12 mm |
| Actuator Marking | I / O |
| Cover Color | Grey |
| Degree of Protection | IP10 |
| Ambient Operating Temperature | -25 °C … +55 °C |
| Ambient Storage Temperature | -40 °C … +70 °C |
| Mounting | DIN Rail |
| Width in Modular Spacings | 4 |
| Compliance & Standards | IEC/EN 60947-3, EN 60669-1, RoHS, REACH |
| Certifications | CE, VDE, CCC, KEMA |
| Recyclability Rate (EN45555) | 81.9 % |
