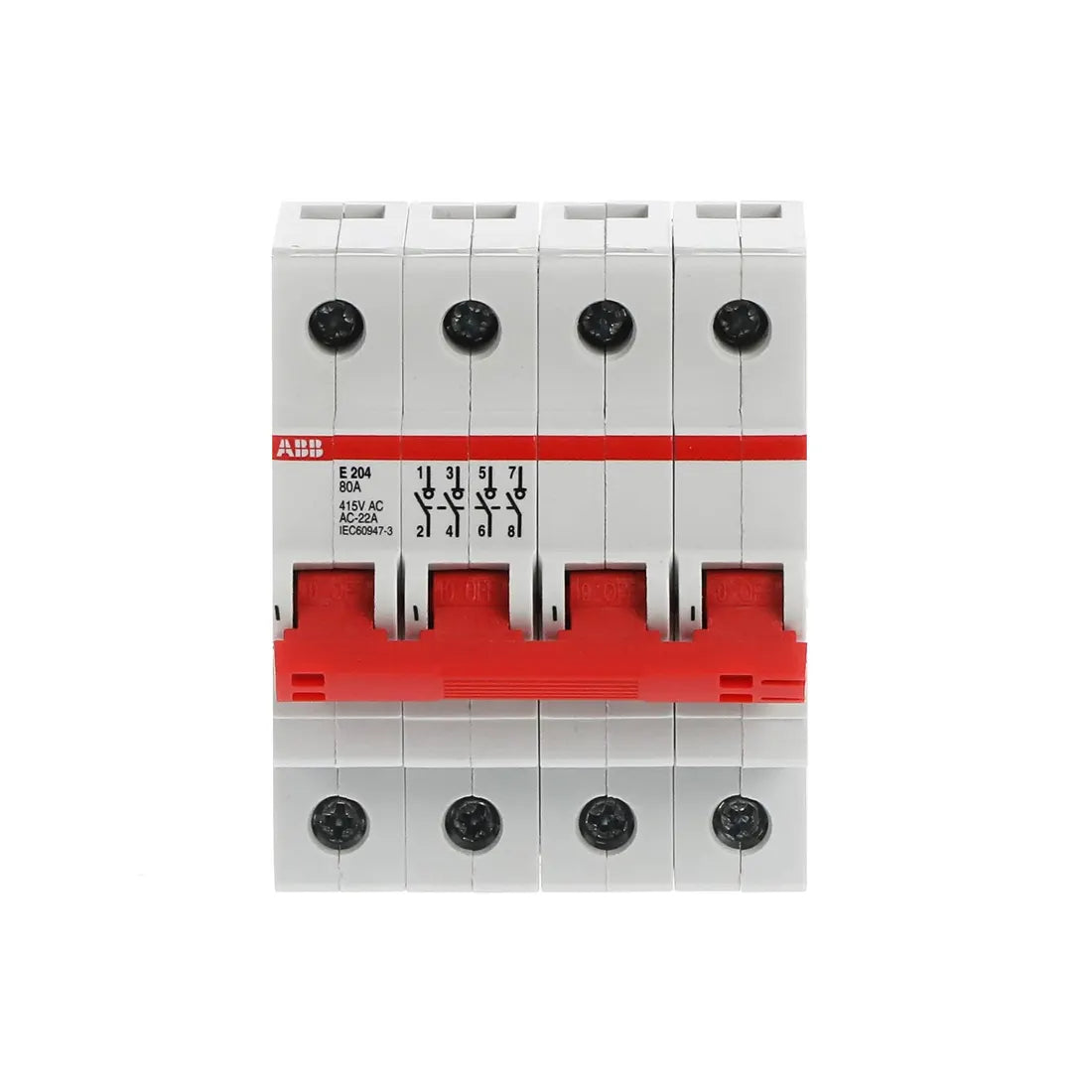

ABB Electrical Isolator Switch 2CDE284001R0080 80A 4P E204/80R
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Isolator Switch
Description
The ABB Electrical Isolator Switch 2CDE284001R0080 80A 4P E204/80R is a reliable and durable 4-pole switch disconnector designed for safe control of electrical loads in industrial and commercial installations. Manufactured according to IEC/EN 60947-3 and EN 60669-1, it features fast busbar removal without dismantling, captive screws with Pozidriv 2 heads, and an integrated labeling edge (ILS). The switch supports up to 3 auxiliary contacts (S2C-H6R) and optional locking to prevent unauthorized operation. Rated at 80A, 230/400V AC, with a short-circuit breaking capacity of 25 kA, it ensures high performance and safety. The grey-covered switch is RoHS and CE compliant, has a recyclability rate of 81.9%, and meets VDE, CCC, and KEMA certifications. Compact and easy to install, with dimensions 70×85×69 mm and IP10 protection, it provides long-term durability, environmental responsibility, and efficient operation for modern electrical panels.
| Brand | ABB |
| Model | E204/80R |
| Product ID | 2CDE284001R0080 |
| Product Type | Isolator |
| Width | 70 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.39 kg |
| Number of Poles | 4P |
| Rated Current (In) | 80 A |
| Rated Voltage (Ur) | 400 V AC (Min 12 V) |
| Rated Conditional Short-Circuit Current (Inc) | 25 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 25 kA |
| Input Voltage Type | AC |
| Switch Type | Off |
| Actuator Type | Toggle |
| Actuator Marking | ON/OFF |
| Cover Color | Grey |
| Recommended Screwdriver | Pozidriv 2 |
| Number of NO Contacts | 4 |
| Number of NC/CO Contacts | 0 |
| Power Loss per Pole | 2.6 W |
| Degree of Protection | IP10 |
| Built-in Depth (t2) | 70 mm |
| Accessories Available | Up to 3 auxiliary contacts S2C-H6R, optional locking device |
| Environmental Compliance | RoHS, CE, End-of-Life Instructions Available |
| Recyclability Rate | 81.9% |
