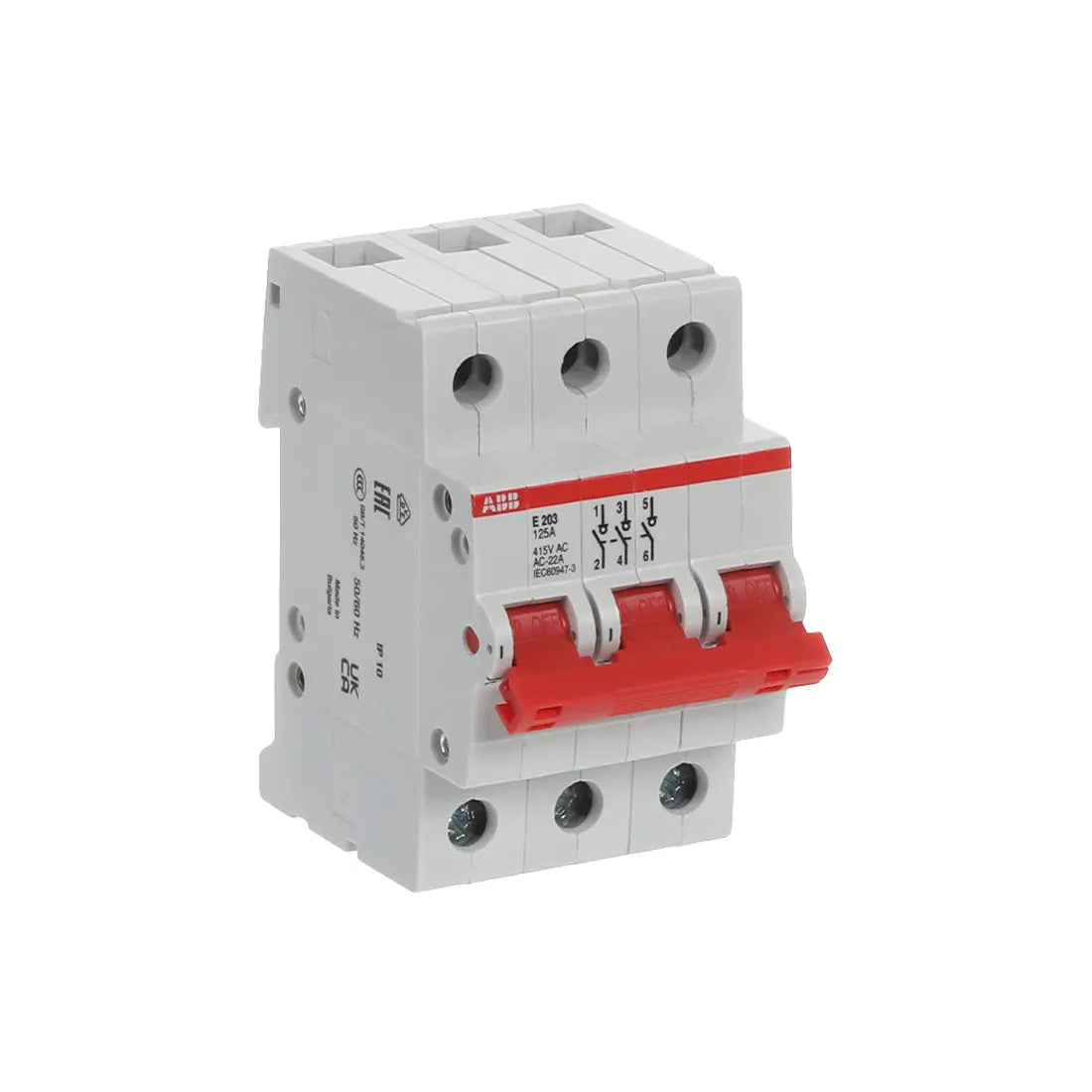

ABB Electrical Isolator Switch 2CDE283001R0125 125A 3P E203/125R
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Isolator Switch
Description
The ABB Electrical Isolator Switch 2CDE283001R0125 125A 3P E203/125R is designed for safe and reliable load control in industrial and commercial applications. Compliant with EN 60947-3 and EN 60669-1, it features fast removal without dismantling the busbar, captive screws with recessed/slotted heads, and Pozidriv size 2 compatibility. Up to three auxiliary contacts (S2C-H6R) can be added, with an integrated lay-on edge for the ILS labeling system. The switch supports a locking device for unauthorized ON/OFF, offering 6 kA short-circuit breaking capacity, 125 A rated current, and 400 V rated voltage. With IP10 protection, a grey cover, and durable construction, it ensures long-term reliability. Environmentally conscious, it is 81.9% recyclable, with no non-hazardous waste sent to landfill, and comes with ABB’s End-of-Life instructions and Environmental Product Declaration (EPD). Approvals include VDE, CCC, and KEMA, making it a trusted choice for safe electrical isolation.
| Brand | ABB |
| Model | E203/125R |
| Product ID | 2CDE283001R0125 |
| Product Type | Isolator |
| Width | 52.5 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.29 kg |
| Rated Current (In) | 125 A |
| Number of Poles | 3P |
| Rated Operational Voltage (Ue) | 230 / 400 V AC |
| Rated Voltage (Ur) | 400 V |
| Rated Conditional Short-Circuit Current (Inc) | 6 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 6 kA |
| Power Loss | 6.1 W per pole |
| Switch Type | Off |
| Actuator Type | Toggle |
| Recommended Screw Driver | Pozidriv 2 |
| Number of Contacts NO | 3 |
| Number of Contacts NC / CO | 0 |
| Accessories Available | Yes |
| Cover Color | Grey |
| Rated Cross-Section | 10…25 mm² Multi-Wired / 25 mm² Solid-Core |
| Mounting | DIN-Rail |
| Degree of Protection | IP10 |
| Ambient Temperature | Operation -25 … +55 °C / Storage -40 … +70 °C |
| Number of Modular Spacings | 3 |
| Material Compliance | RoHS, CE |
| Standards & Compliance | IEC/EN 60947-3, EN certified |
