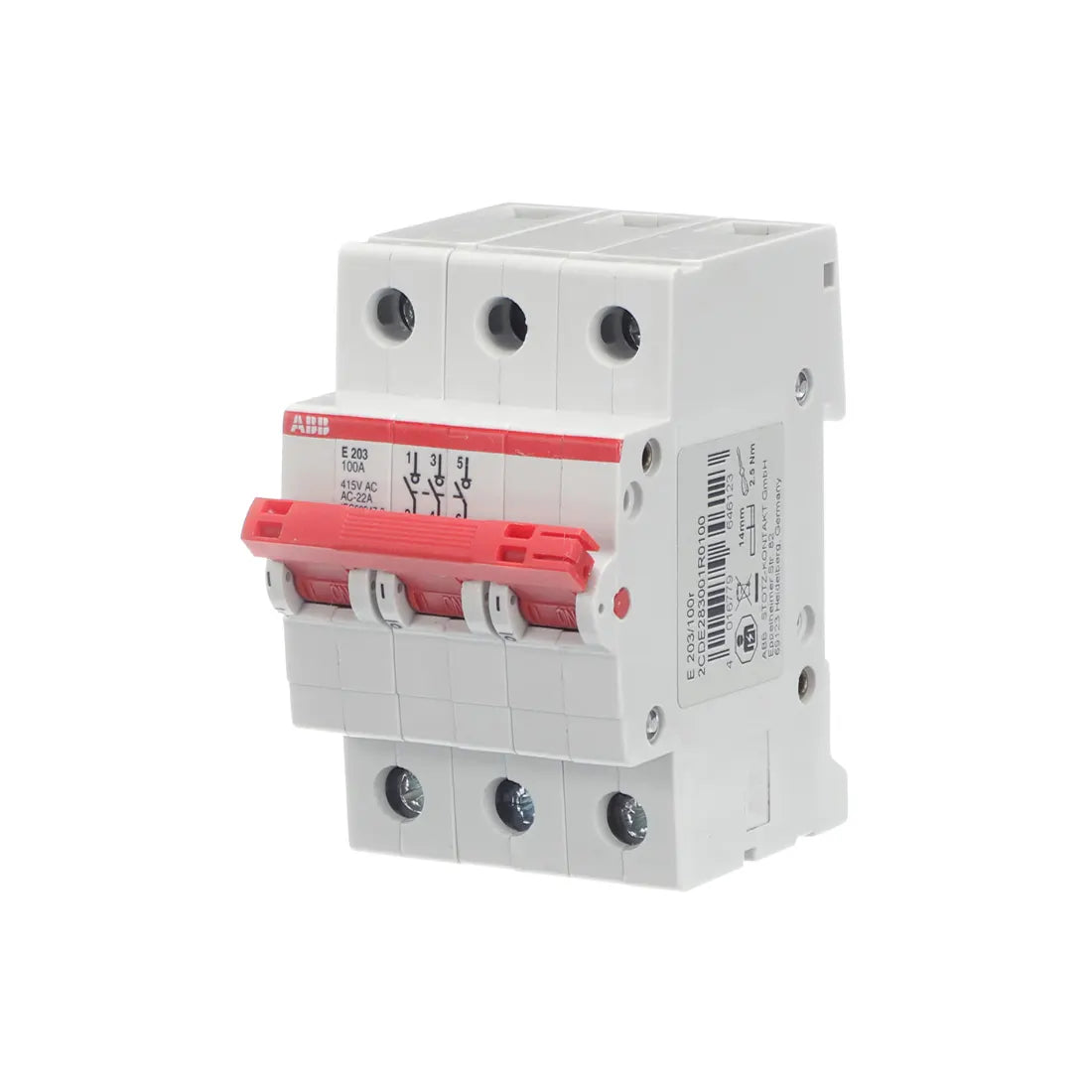

ABB Electrical Isolator Switch 2CDE283001R0100 100A 3P E203/100R
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Isolator Switch
Description
The ABB Electrical Isolator Switch 3P 100A E203/100R (2CDE283001R0100) is a high-quality switch disconnector designed for safe load isolation and reliable performance in electrical systems. Built according to EN 60947-3 and EN 60669-1 standards, it supports fast removal without dismantling the busbar, captive Pozidriv screws, and optional auxiliary contacts for extended functionality. With a rated operational voltage of 230/400V AC, short-circuit capacity of 25kA, and IP10 protection, it ensures dependable operation for distribution boards and main switch applications. Compact and durable with a width of 52.5mm, height of 85mm, and depth of 69mm, this isolator complies with RoHS, REACH, and CE certifications while offering 81.9% recyclability and extended product lifetime, making it an efficient and eco-friendly choice for professional installations.
| Brand | ABB |
| Model | E203/100R |
| Product ID | 2CDE283001R0100 |
| Product Type | Isolator |
| Width | 52.5 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.29 kg |
| Rated Current (In) | 100 A |
| Number of Poles | 3P |
| Rated Operational Voltage (Ue) | 230 / 400 V AC |
| Rated Voltage (Ur) | 400 V (12 V Minimum) |
| Rated Conditional Short-Circuit Current (Inc) | 25 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 25 kA |
| Power Loss | 3.95 W per pole at rated conditions |
| Input Voltage Type | AC |
| Switch Type | OFF / Toggle |
| Actuator Marking | I / O |
| Cover Color | Grey |
| Degree of Protection | IP10 |
| Operating Temperature Range | -25°C to +55°C |
| Storage Temperature Range | -40°C to +70°C |
| Width in Modular Spacings | 3 modules |
| Standards & Compliance | IEC/EN 60947-3, CE, RoHS, REACH compliant |
| Accessories | Auxiliary contact (S2C-H6R) add-on available |
| Installation | Fast removal without dismantling busbar, captive screws (Pozidriv 2) |
| Recyclability Rate | 81.9% (per EN45555) |
