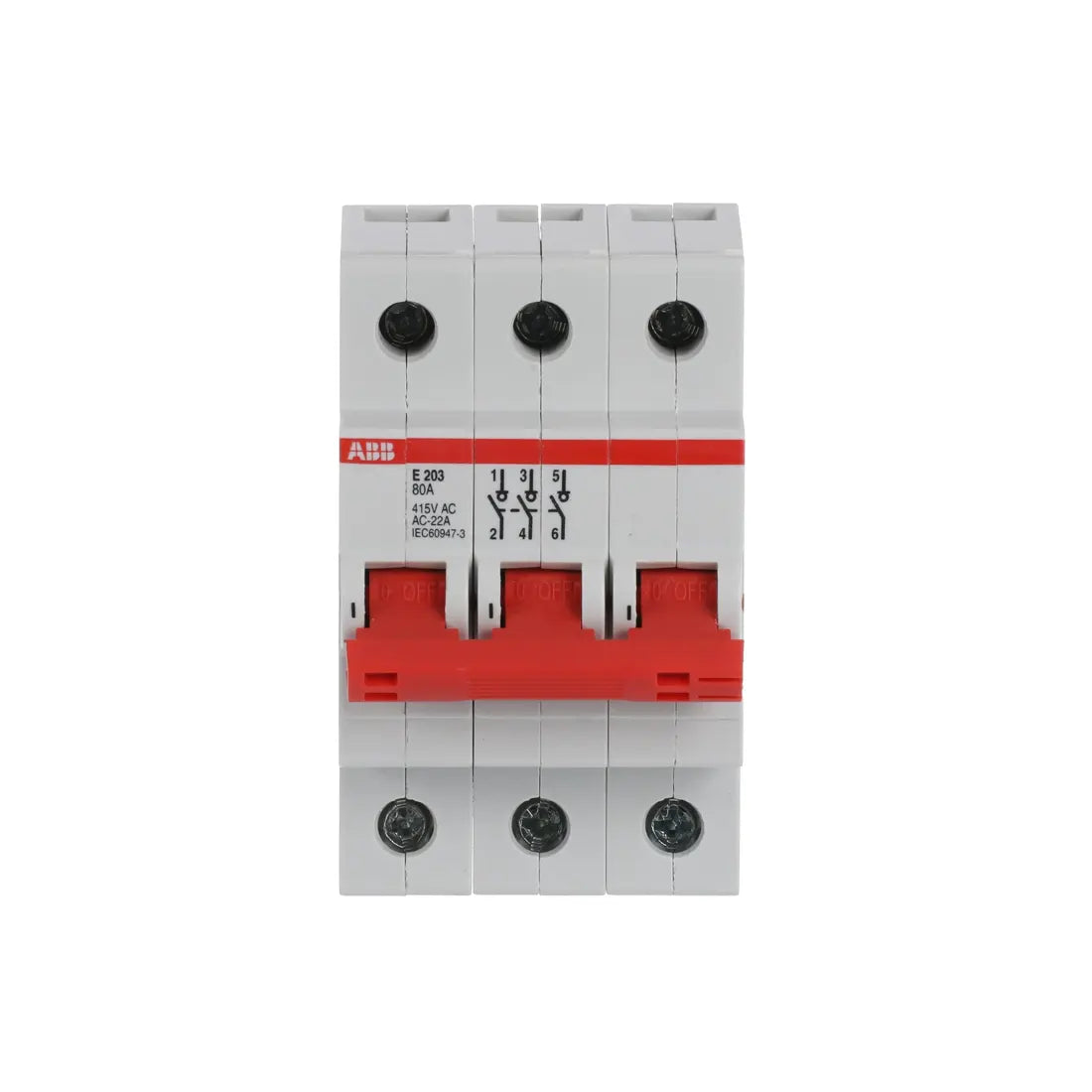

ABB Electrical Isolator Switch 2CDE283001R0080 80A 3P E203/80R
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Isolator Switch
Description
The ABB Electrical Isolator Switch 2CDE283001R0080 (80A, 3P, E203/80R) is engineered for safe and reliable load control in industrial and commercial applications. Designed according to EN 60947-3 and EN 60669-1 standards, it features fast busbar removal without dismantling, captive screws with recessed/slotted heads, and a toggle actuator with clear I/O marking. The switch supports up to 3 auxiliary contacts (S2C-H6R), includes an integrated lay-on edge for labeling (ILS), and can be equipped with a locking device to prevent unauthorized operation. Certified by VDE, CCC, and KEMA, it ensures durability and long operational life while complying with RoHS and REACH directives. Rated at 400 V AC and 80 A, with a short-circuit breaking capacity of 25 kA, this grey-colored 3-pole isolator is suitable for various AC applications and offers efficient power loss management at only 2.6 W per pole. Ideal for professional installations, it combines safety, reliability, and eco-conscious design with a recyclability rate of 81.9%.
| Brand | ABB |
| Model | E203/80R |
| Product ID | 2CDE283001R0080 |
| Product Type | Isolator |
| Width | 52.5 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.29 kg |
| Number of Poles | 3P |
| Rated Current (In) | 80 A |
| Rated Voltage (Ur) | 400 V AC |
| Operational Voltage | 230 / 400 V AC |
| Rated Conditional Short-Circuit Current (Inc) | 25 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 25 kA |
| Input Voltage Type | AC |
| Switch Type | Off |
| Actuator Type | Toggle |
| Actuator Marking | I / O |
| Cover Color | Grey |
| Recommended Screwdriver | Pozidriv 2 |
| Number of NO Contacts | 3 |
| Number of NC/CO Contacts | 0 |
| Power Loss per Pole | 2.6 W |
| Degree of Protection | IP10 |
| Built-in Depth (t2) | 70 mm |
| Accessories Available | Yes |
| Environmental Compliance | RoHS, REACH |
| Recyclability Rate | 81.9% |
