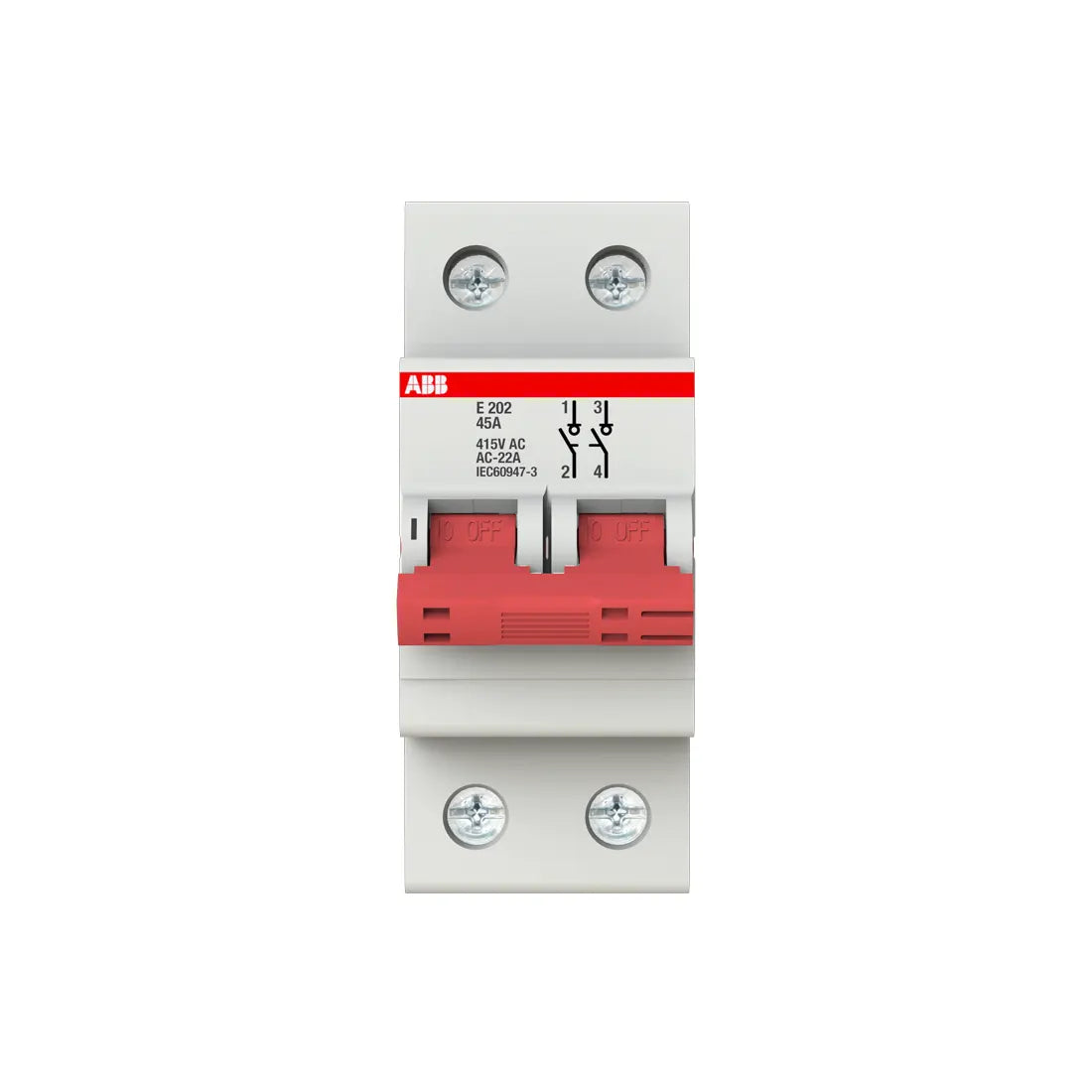

ABB Electrical Isolator Switch 2CDE282001R0045 45A 2P E202/45R
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Isolator Switch
Description
The ABB Electrical Isolator Switch 2CDE282001R0045 45A 2P E202/45R is designed for safe and reliable load control in residential and commercial installations. Compliant with EN 60947-3 and EN 60669-1 standards, it features a toggle actuator, cage screw terminals, and a grey insulated cover. With fast busbar removal, optional auxiliary contacts, and lockable ON/OFF functionality, this switch ensures safety and convenience. Rated 45A, 230/400V AC, 25 kA short-circuit capacity, it is eco-friendly, durable, and certified by VDE, CCC, and KEMA, making it ideal for modern electrical setups.
| Brand | ABB |
| Model | E202/45R |
| Product ID | 2CDE282001R0045 |
| Product Type | Isolator |
| Width | 35 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.19 kg |
| Rated Current (In) | 45 A |
| Number of Poles | 2P |
| Rated Operational Voltage (Ue) | 230 / 400 V AC |
| Rated Short-time Withstand Current (Icw) | 2 kA |
| Rated Conditional Short-Circuit Current (Inc) | 25 kA |
| Rated Voltage (Ur) | 400 V |
| Input Voltage Type | AC |
| Rated Frequency (f) | 50 Hz |
| Power Loss | 0.9 W per pole (at rated operating conditions) |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Switch Type | Off / Isolator |
| Actuator Type | Toggle |
| Actuator Material | Insulation Group II, Black, Sealable |
| Terminal Type | Cage Screw Terminals |
| Wire Stripping Length | 12 mm |
| Recommended Screwdriver | Pozidriv 2 |
| Accessories Available | Yes |
| Cover Color | Grey |
| Mounting | DIN-Rail / Panel Mount |
| Degree of Protection | IP10 |
| Ambient Temperature | Operation -25 … +55 °C, Storage -40 … +70 °C |
| Electrical Endurance | 10,000 AC cycles |
| Mechanical Endurance | 20,000 cycles |
| Standards & Compliance | IEC/EN 60947-3, CE, VDE, CCC, KEMA |
