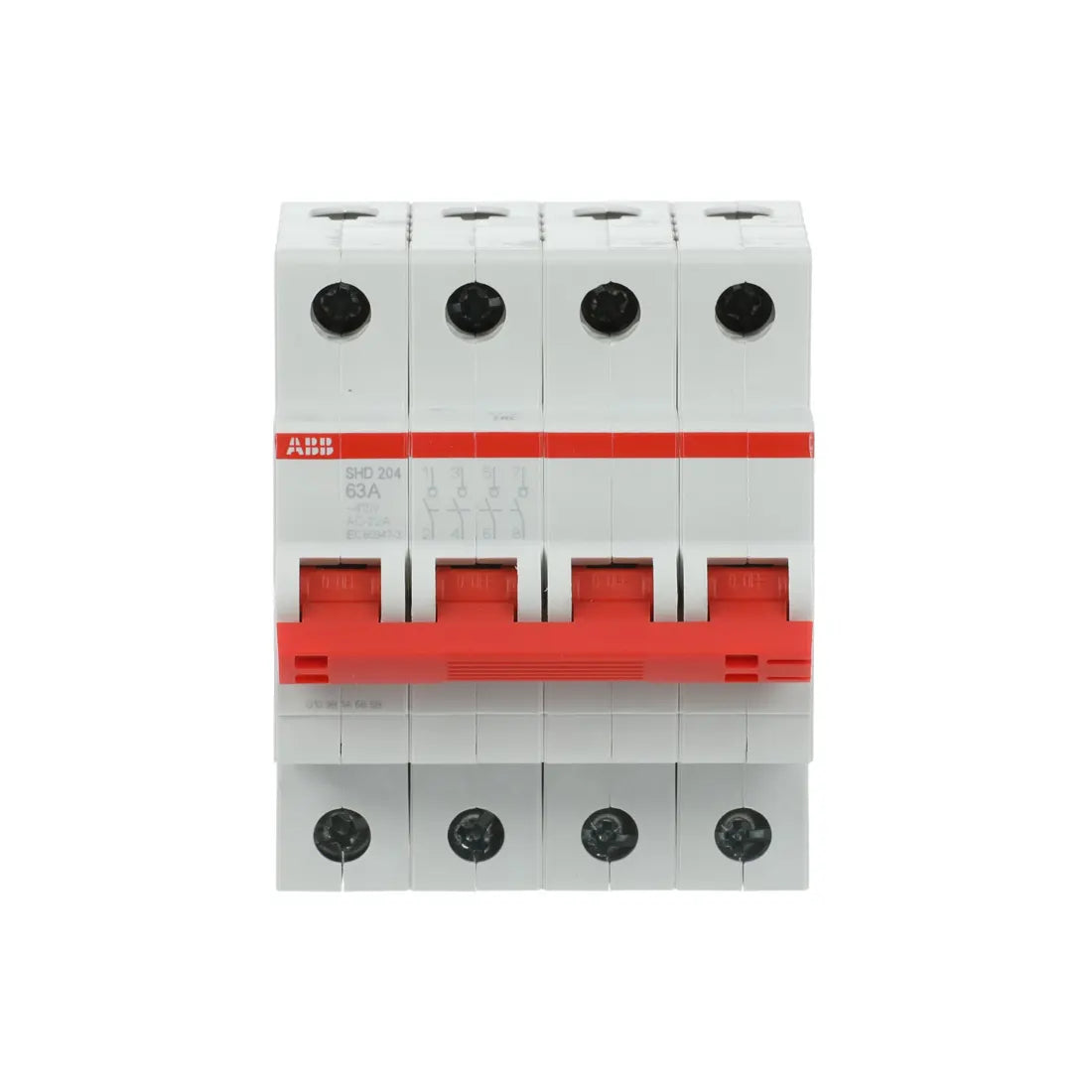

ABB Electrical Isolator Switch 2CDD274111R0063 63A 4P SHD204/63
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Isolator Switch
Description
ABB Electrical Isolator Switch 2CDD274111R0063 63A 4P SHD204/63 is a high-quality, durable switch designed for safe control of electrical loads. Compliant with EN 60947-3 standards, it features a 4-pole configuration with a toggle actuator, screw terminals, and a grey housing. Rated at 415 V AC/DC and 63 A, it ensures reliable operation with up to 10 kA short-circuit current capacity. With 20,000 mechanical and 10,000 electrical cycles, it offers long-term durability. The switch supports AC-22A load switching, is equipped with Pozidriv 2 screws, and is compatible with flexible, rigid, and stranded cables (0.75–25 mm²). Environmentally friendly, it has an 83.9% recyclability rate and complies with RoHS and REACH regulations. Ideal for safe load management in residential, commercial, and industrial applications.
| Brand | ABB |
| Model | SHD204/63 |
| Product ID | 2CDD274111R0063 |
| Product Type | Isolator |
| Width | 70 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.3 kg |
| Number of Poles | 4P |
| Rated Current (In) | 63 A |
| Rated Voltage (Ur) | 415 V AC / 12 V minimum |
| Rated Operational Voltage | 415 V AC |
| Input Voltage Type | AC/DC |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (2000 m) / 5 kV (Sea Level) / 6.2 kV |
| Power Loss per Pole | 5.03 W |
| Switch Type | Off |
| Actuator Type | Toggle (I / O marking, Red, Sealable) |
| Screw Terminal Type | Cable Clamp |
| Connecting Capacity | Flexible 0.75–16 mm², Rigid 0.75–25 mm², Stranded 0.75–25 mm² |
| Tightening Torque | 2 N·m |
| Electrical Endurance | 10,000 AC cycles |
| Mechanical Endurance | 20,000 cycles |
| Overvoltage Category | III |
| Degree of Protection | IP20 (enclosure with cover IP40) |
| Housing Material | Insulation Group I, RAL 7035 |
| Environmental Conditions | Operation −25 °C to +55 °C, Storage −40 °C to +70 °C |
| Resistance to Vibrations | 20 cycles, 5 g, 5–150–5 Hz |
| Resistance to Shock | 25 g, 2 shocks, 13 ms |
| Accessories Available | No |
| Recyclability Rate | 83.9 % |
| Standards | IEC/EN 60947-3 |
| Certifications | CE Declaration SHD200, RoHS, REACH |
