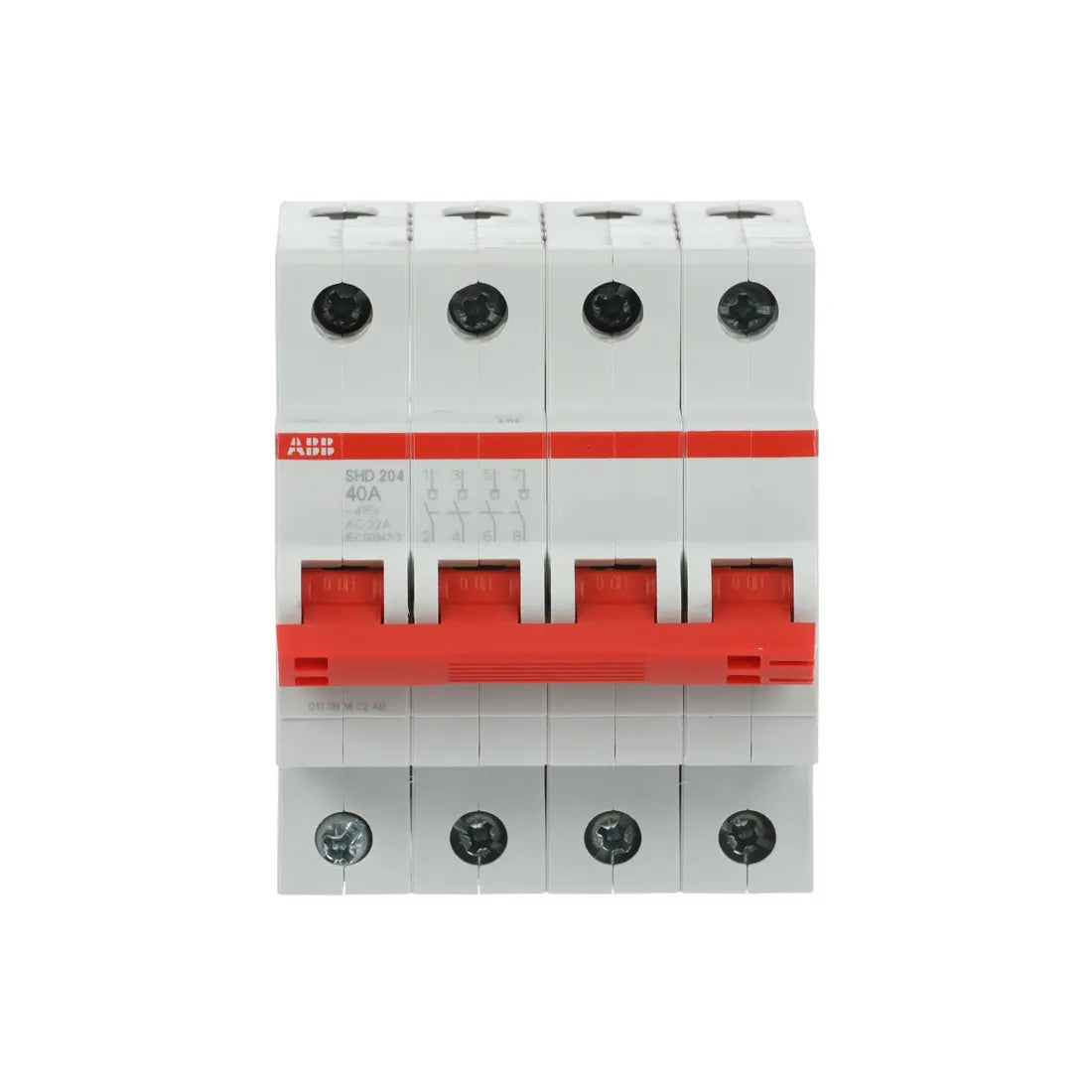

ABB Electrical Isolator Switch 2CDD274111R0040 40A 4P SHD204/40
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Isolator Switch
Description
The ABB Electrical Isolator Switch 2CDD274111R0040 40A 4P SHD204/40 is designed for safe and reliable AC load control, suitable for switching mixed resistive and inductive loads. Compliant with EN standards, it features a durable toggle actuator, cable clamp screw terminals, and IP20 protection with cover IP40. With 4 poles, 40 A current rating, 415 V operational voltage, and 10 kA short-circuit capacity, this switch ensures robust performance. Eco-friendly with high recyclability, end-of-life takeback services, and ABB EcoSolutions certification, it is built for longevity, vibration and shock resistance, and versatile mounting in any position.
| Brand | ABB |
| Model | SHD204/40 |
| Product ID | 2CDD274111R0040 |
| Product Type | Isolator |
| Width | 70 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.3 kg |
| Rated Current (In) | 40 A |
| Number of Poles | 4P |
| Rated Operational Voltage (Ue) | 415 V AC |
| Rated Voltage (Ur) | 415 V (AC), 12 V minimum |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (2000 m: 5 kV, Sea level: 6.2 kV) |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Electrical Endurance | 10,000 AC cycles |
| Mechanical Endurance | 20,000 cycles |
| Switch Type | Off |
| Actuator Type | Toggle |
| Actuator Material | Insulation Group II, Red, Sealable |
| Terminal Type | Screw Terminals (Cable Clamp) |
| Connecting Capacity | Flexible 0.75 … 16 mm², Rigid 0.75 … 25 mm², Stranded 0.75 … 25 mm² |
| Power Loss | 2.53 W per pole |
| Degree of Protection | IP20 (Enclosure with Cover IP40) |
| Overvoltage Category | III |
| Ambient Temperature | Operation -25 … +55 °C, Storage -40 … +70 °C |
| Housing Material | Insulation Group I, RAL 7035 |
| Mounting Position | Any |
| Recyclability / Eco Info | 40.8% recyclable, Takeback services, ABB EcoSolutions |
