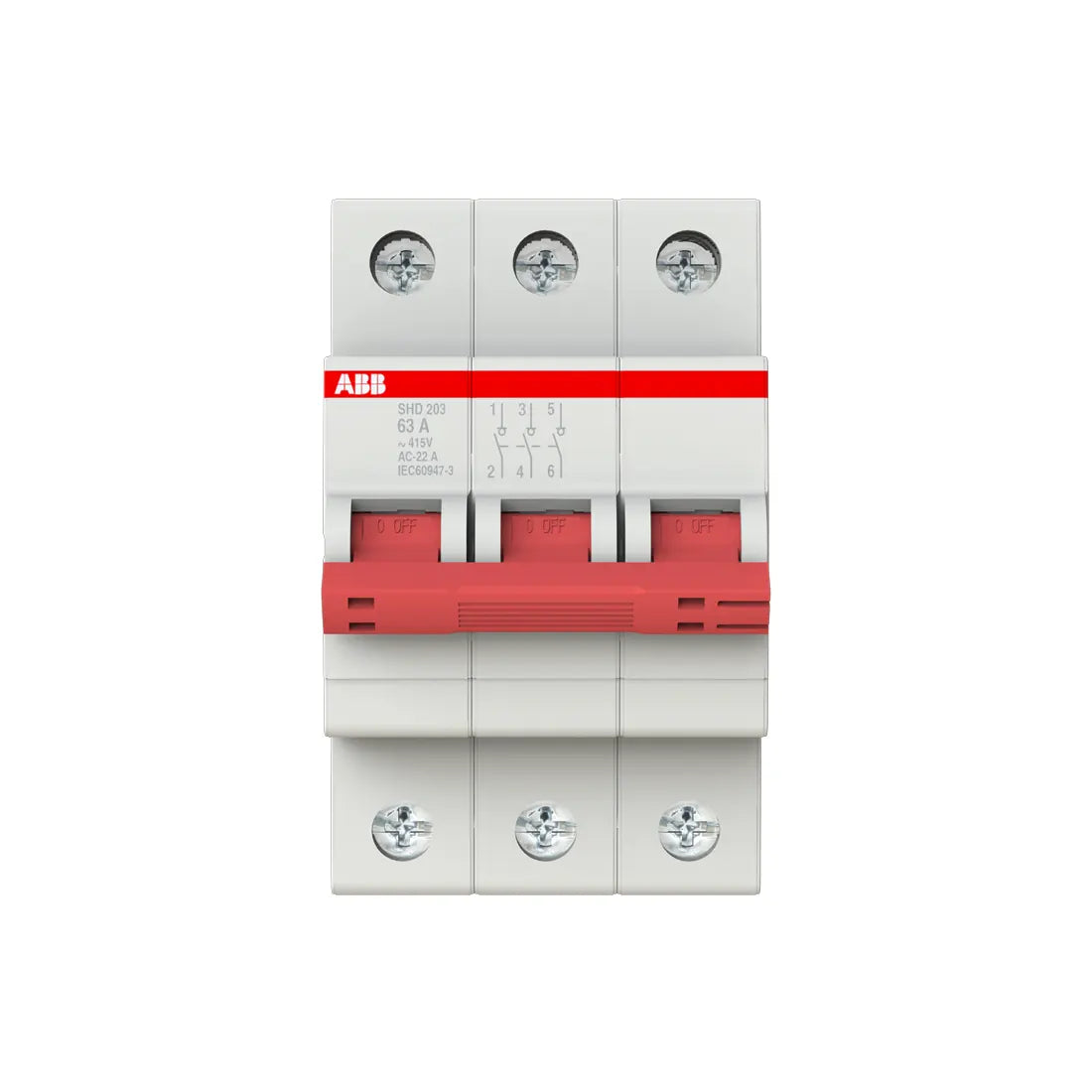

ABB Electrical Isolator Switch 2CDD273111R0063 63A 3P SHD203/63
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Isolator Switch
Description
The ABB Electrical Isolator Switch 2CDD273111R0063 63A 3P SHD203/63 is a reliable and durable switch designed for commanding mixed resistive and inductive loads with moderate overloads. Compliant with EN 60947-3 and EN 60669-1 standards, this 3-pole switch features a toggle actuator, cable clamp screw terminals, and a grey housing with IP20 protection. Rated for 415 V AC/DC and 63 A, it offers high mechanical (20,000 cycles) and electrical endurance (10,000 AC cycles), ensuring long-lasting performance. The switch supports easy installation with a Pozidriv 2 screwdriver, allows flexible and rigid wiring from 0.75 to 25 mm², and includes features like sealable actuator markings and robust construction. Environmentally friendly, it follows ABB EcoSolutions guidelines with 83.9% recyclability, take-back for recycling, and minimal waste to landfill. CE and RoHS compliant, the SHD203/63 ensures safe, efficient, and sustainable load control for industrial and commercial applications.
| Brand | ABB |
| Model | SHD203/63 |
| Product ID | 2CDD273111R0063 |
| Product Type | Isolator |
| Width | 52.5 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.225 kg |
| Number of Poles | 3P |
| Rated Current (In) | 63 A |
| Rated Operational Voltage | 415 V AC / 12 V Minimum |
| Input Voltage Type | AC/DC |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (2000 m), 5 kV (Sea Level), 6.2 kV |
| Rated Frequency | 50 / 60 Hz |
| Electrical Endurance | 10,000 AC cycles |
| Mechanical Endurance | 20,000 cycles |
| Switch Type | Off |
| Actuator Type | Toggle |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Red, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Terminal Type | Screw Terminals |
| Connecting Capacity | Flexible 0.75–16 mm², Rigid 0.75–25 mm², Stranded 0.75–25 mm² |
| Power Loss per Pole | 5.03 W |
| Overvoltage Category | III |
| Degree of Protection | IP20 (Enclosure with Cover IP40) |
| Housing Material | Insulation Group I, RAL 7035 |
