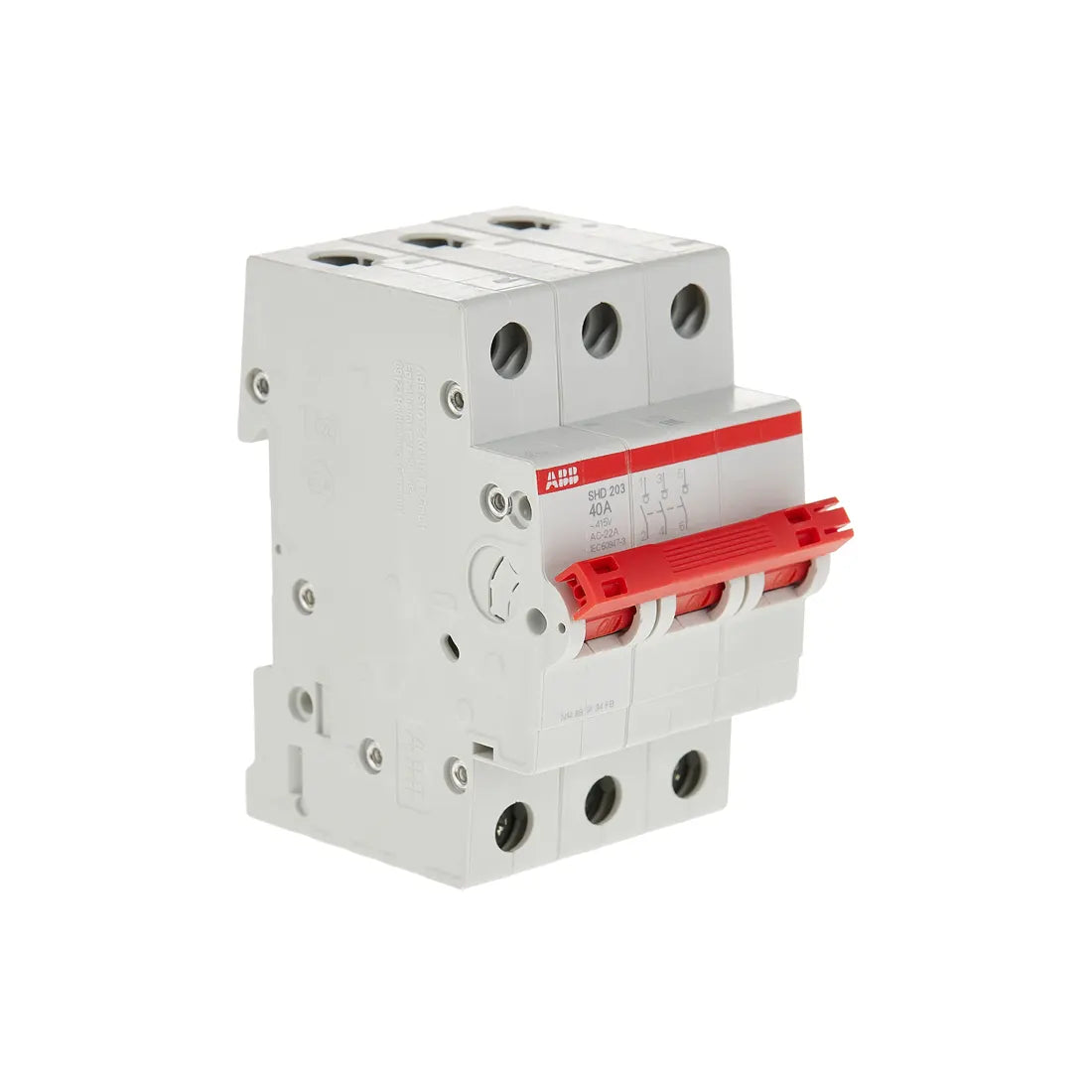

ABB Electrical Isolator Switch 2CDD273111R0040 40A 3P SHD203/40
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Isolator Switch
Description
ABB Electrical Isolator Switch 3P 40A SHD203/40 is designed for safe and reliable switching of mixed resistive and inductive AC loads. Compliant with EN 60947-3 standards, it features a durable toggle actuator, cable clamp screw terminals, and IP20 protection with an enclosure cover rated IP40. Built for long-lasting performance, it supports 415 V AC operation, withstands up to 10 kA short-circuit current, and endures 10,000 electrical and 20,000 mechanical cycles. The compact 3-module design allows easy installation, while its recyclable materials and ABB EcoSolutions compliance ensure sustainability. Suitable for industrial and commercial applications, it provides secure load control with high reliability and safety.
| Brand | ABB |
| Model | SHD203/40 |
| Product ID | 2CDD273111R0040 |
| Product Type | Isolator |
| Width | 52.5 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.225 kg |
| Rated Current (In) | 40 A |
| Number of Poles | 3P |
| Rated Operational Voltage (Ue) | 415 V AC |
| Input Voltage Type | AC |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Frequency | 50 / 60 Hz |
| Electrical Endurance | 10,000 AC cycles |
| Mechanical Endurance | 20,000 cycles |
| Switch Type / Operating Characteristic | Off / Toggle |
| Actuator Material & Marking | Insulation Group II, Red, Sealable / I / O |
| Terminal Type & Connecting Capacity | Screw Terminals / Flexible 0.75–16 mm², Rigid 0.75–25 mm², Stranded 0.75–25 mm² |
| Power Loss | 2.53 W per pole at rated conditions |
| Degree of Protection | IP20 (Enclosure with cover IP40) |
| Mounting Position | Any |
| Overvoltage Category | III |
| Standards & Compliance | EN 60947-3, RoHS, WEEE, ABB EcoSolutions |
