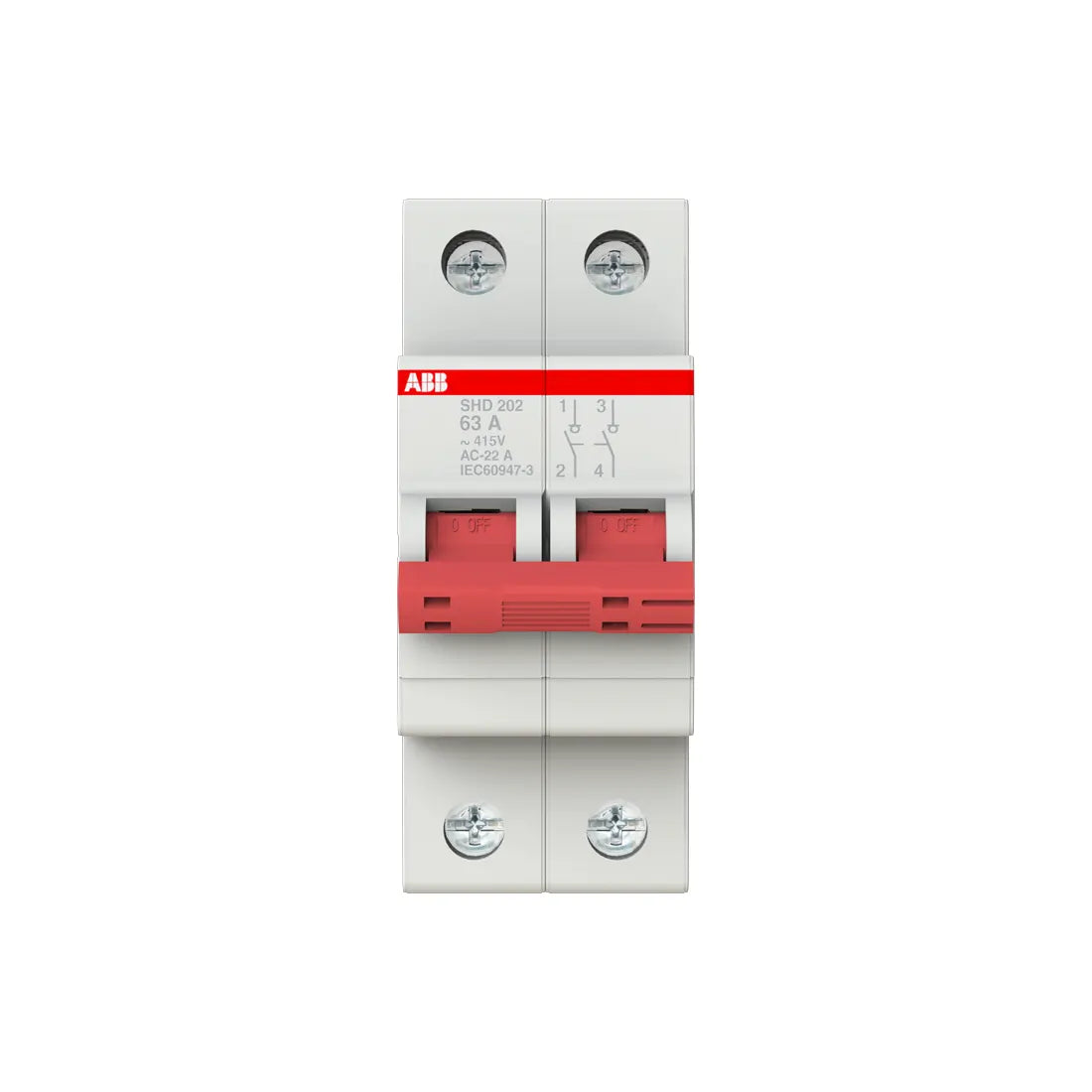

ABB Electrical Isolator Switch 2CDD272111R0063 63A 2P SHD202/63
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Isolator Switch
Description
The ABB SHD202/63 2P Electrical Isolator Switch is designed for safe and efficient load control in industrial and commercial applications. Rated at 63A with AC/DC compatibility, this switch ensures reliable switching of resistive and mixed loads, including moderate overloads, for frequent operation. It features a robust toggle actuator with clear I/O markings, durable screw terminals, and flexible connection options for cables up to 25 mm². Built with high-quality insulation and a compact 2-module design, it offers IP20 protection with an enclosure cover rated at IP40. This eco-friendly switch supports ABB EcoSolutions with a recyclability rate of 83.9%, extended product lifetime, and safe end-of-life disposal. Ideal for secure and long-lasting electrical installations, it meets IEC/EN 60947-3 standards and offers 10 kA short-circuit protection.
| Brand | ABB |
| Model | SHD202/63 |
| Product ID | 2CDD272111R0063 |
| Product Type | Isolator |
| Width | 35 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.15 kg |
| Rated Current (In) | 63 A |
| Number of Poles | 2P |
| Rated Operational Voltage (Ue) | 415 V AC / 125 V DC |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (up to 6.2 kV at sea level) |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Switch Type | Off / On (Toggle Actuator) |
| Actuator Material | Insulation Group II, Red, Sealable |
| Screw Terminal Type | Cable Clamp |
| Connecting Capacity | Flexible 0.75 – 16 mm², Rigid 0.75 – 25 mm², Stranded 0.75 – 25 mm² |
| Electrical Endurance | 10,000 AC cycles |
| Mechanical Endurance | 20,000 cycles |
| Power Loss per Pole | 5.03 W |
| Degree of Protection | IP20 (Enclosure with Cover IP40) |
| Ambient Operating Temperature | -25 … +55 °C |
| Storage Temperature | -40 … +70 °C |
| Standards & Compliance | IEC/EN 60947-3, CE, RoHS, REACH |
