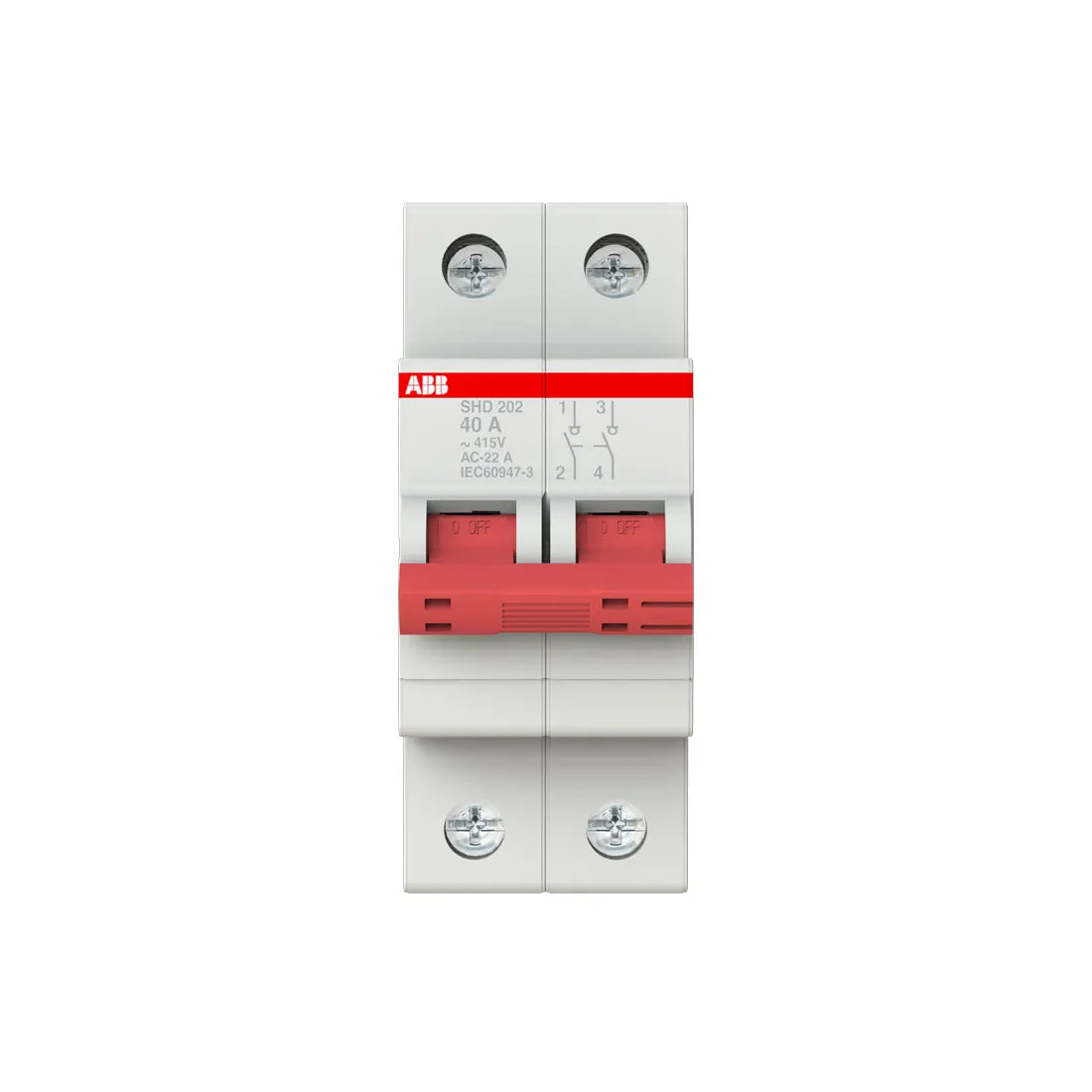

ABB Electrical Isolator Switch 2CDD272111R0040 40A 2P SHD202/40
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : ABB
Type : Isolator Switch
Description
The ABB Electrical Isolator Switch 2CDD272111R0040 40A 2P SHD202/40 is designed for safe and reliable load control in industrial and commercial applications. Part of the SHD200 series, it offers robust protection for resistive and mixed resistive-inductive loads with frequent switching. This 2-pole switch supports AC/DC operation up to 415 V AC / 125 V DC, with a rated current of 40 A and a conditional short-circuit current of 10 kA. The switch features a toggle actuator, screw terminals with cable clamp, and flexible wiring options from 0.75–25 mm². Engineered for durability, it offers 10,000 AC and 20,000 mechanical cycles, IP20 protection, and an overvoltage category III rating. Built with environmentally-conscious materials, it complies with RoHS and comes with ABB EcoSolutions features for recyclability. Compact and easy to install, it supports mounting in any position, making it ideal for versatile electrical distribution setups.
| Brand | ABB |
| Model | SHD202/40 |
| Product ID | 2CDD272111R0040 |
| Product Type | Isolator |
| Width | 35 mm |
| Height | 85 mm |
| Depth | 69 mm |
| Net Weight | 0.15 kg |
| Rated Current (In) | 40 A |
| Number of Poles | 2P |
| Rated Operational Voltage (Ue) | 415 V AC / 125 V DC |
| Rated Insulation Voltage (Ui) | 415 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (at 2000 m), 5 kV (at sea level), 6.2 kV |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Frequency | 50 / 60 Hz |
| Electrical Endurance | 10,000 AC cycles |
| Mechanical Endurance | 20,000 cycles |
| Operating Characteristic | On/Off toggle |
| Actuator Type | Toggle, Insulation Group II, Red, Sealable |
| Number of Modules | 2 |
| Rated Cross-Section | Flexible 0.75–16 mm², Rigid 0.75–25 mm², Stranded 0.75–25 mm² |
| Power Loss | 2.53 W per pole |
| Mounting | Any position |
| Degree of Protection | IP20 (Enclosure with Cover IP40) |
| Ambient Temperature | Operation: -25 … +55 °C, Storage: -40 … +70 °C |
| Standards & Compliance | IEC/EN 60947-3, RoHS, ABB EcoSolutions, WEEE Category 5 |
